Connection with Kepware OPC Server - No Security

  • Name: KepwareNoSecurity
  • Version 1.0.0.0
  • Protocol: OPC UA
  • Interface: TCP/IP
  • Runtime: Multiplatform
  • Configuration:
    • Devices / Protocols




On this page:

Overview

This page provides a detailed guide on how to establish a connection to Kepware without enabling security policies.It includes step-by-step instructions for configuring the necessary settings, disabling security features, and ensuring successful communication between the client and server

System Requirements:

  • KepServerEx V5 (or higher).
  • OPC UA Client Connector

How to Use

The procedure for a successful OPC UA connection is divided into three main steps.

  • KepServerEx OPC UA Server Configuration
  • Creating certificates for Engineering and Runtime
  • Importing client certificates on OPC UA


Steps to configure Kepware with no security

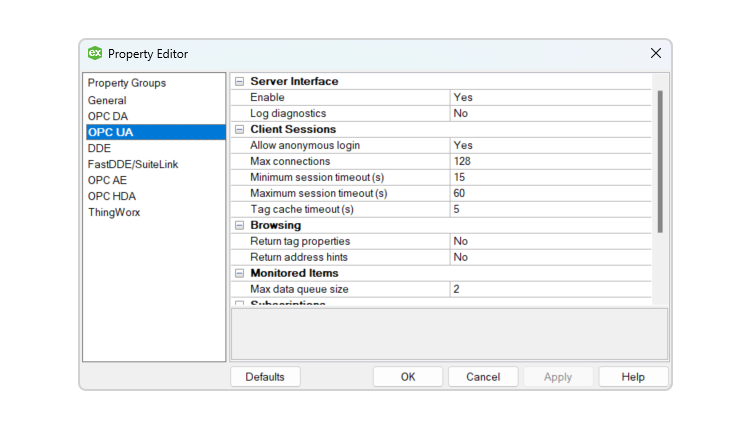

1 - Open KepServer and right-click on Project → 'Properties...' and configure the following settings.

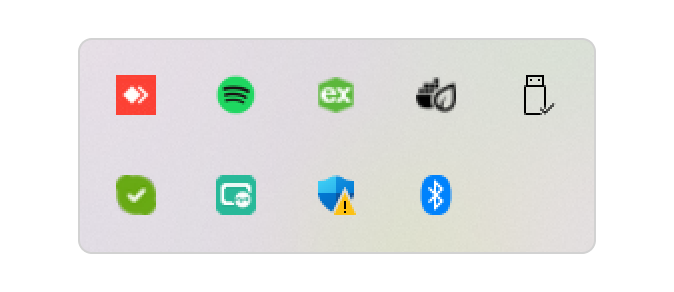

2 - Right-click on the following icon in the hidden icons section of Windows and select OPC UA Configuration:

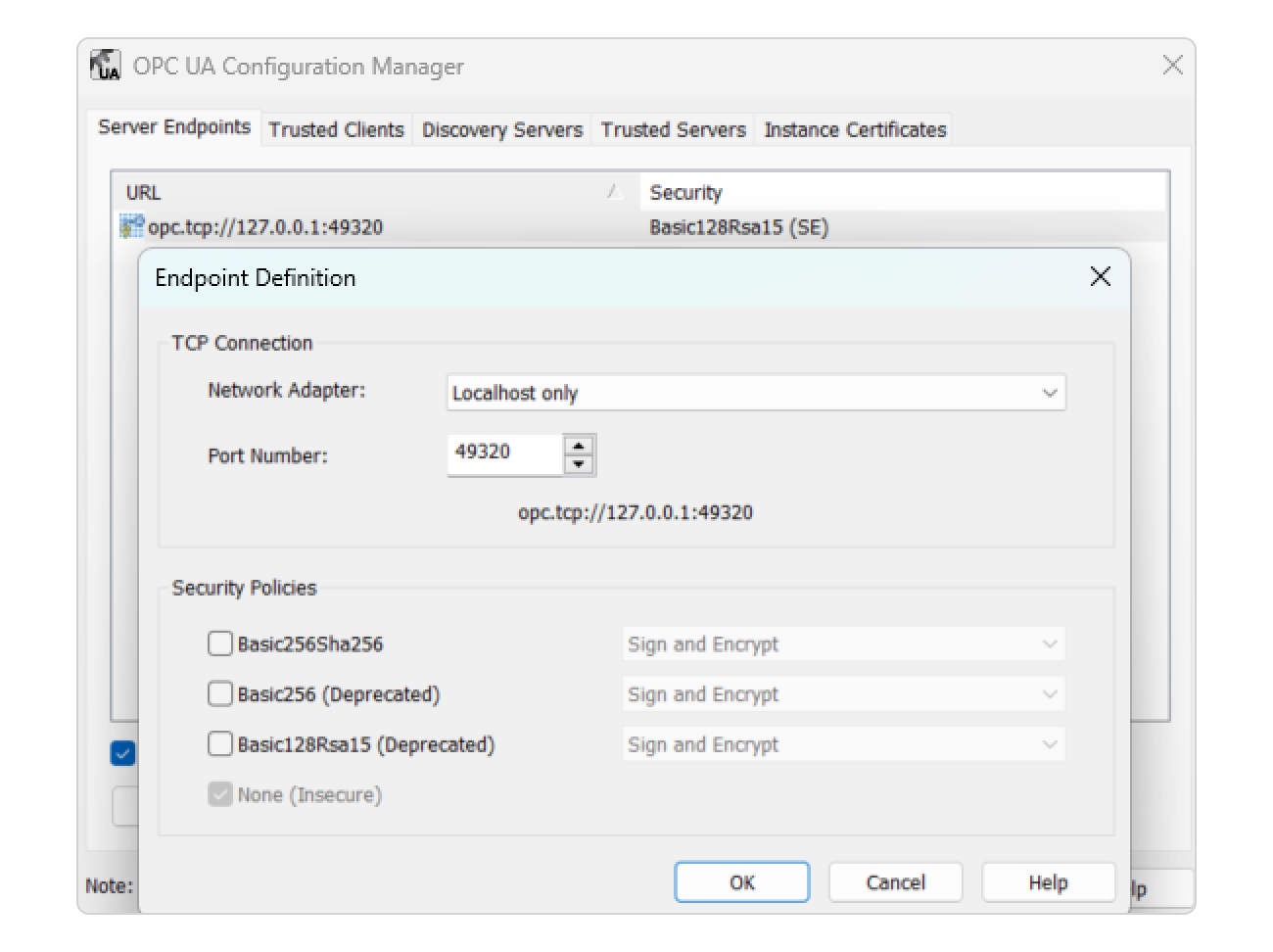

3 - In the 'Server Endpoint' tab, create or modify the preexisting settings as shown:

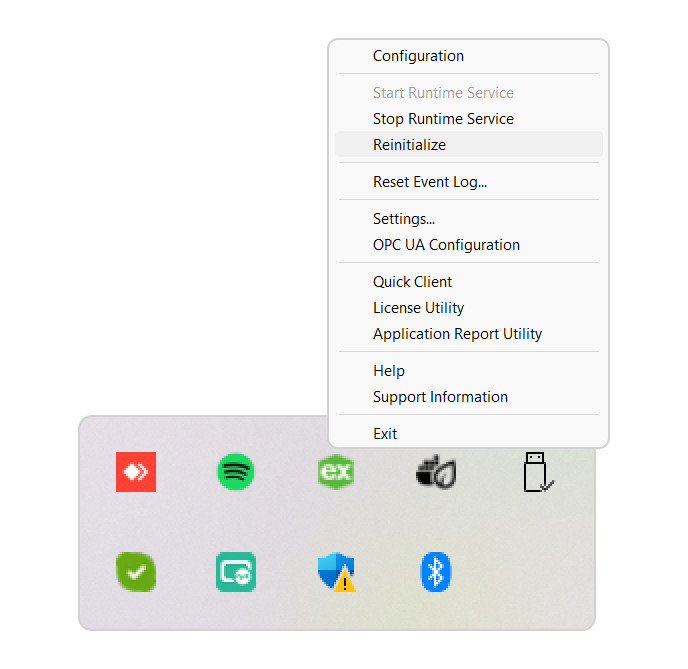

4 - Right-click on the same icon as in step 3 and select “Reinitialize”.

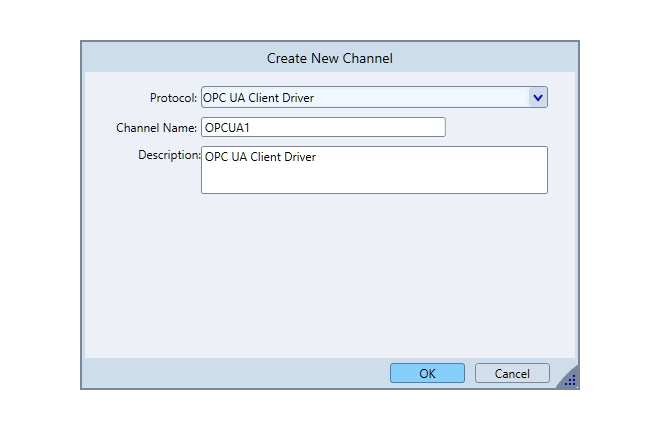

5 - Open the software, navigate to Channel section and create a new channel using the OPC UA Client Driver protocol.

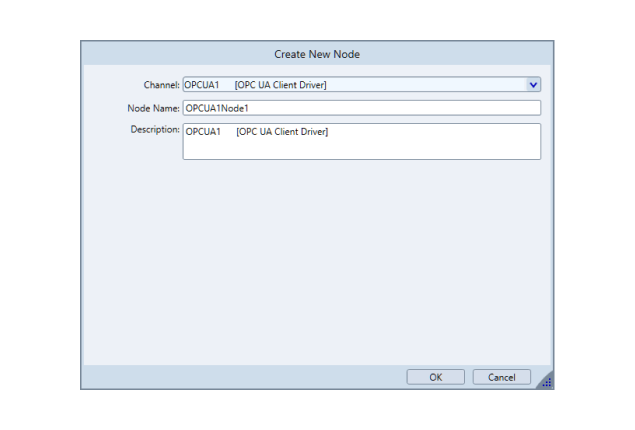

6 - Go to Nodes section and create a new Node

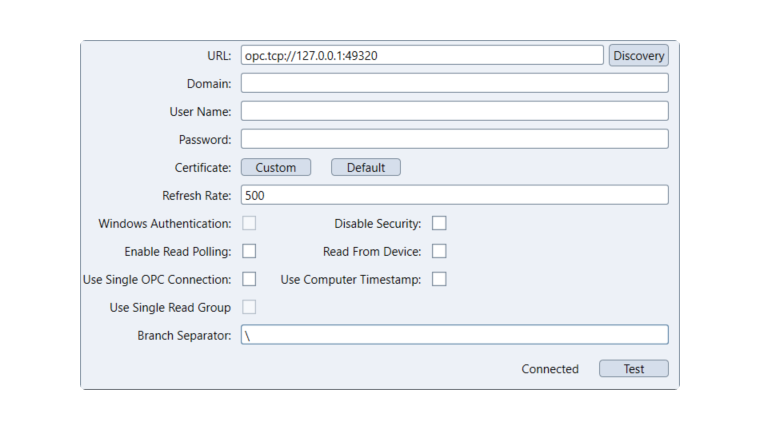

7 - Click in PrimaryStation, select mark “Disable Security”. After that, Click test and you will see “Connected”
