Included Themes
Light Themes
Dark Themes
High Contrast Themes
Themes Description
Themes are presented in complementary Light and Dark pairs, giving users the freedom to match their preferred visual style.
Theme Pair | Description |
|---|---|
Light & Dark | Clean white and classic dark — optimized for bright or dim environments. |
Platinum & Onyx | Subtle gray tones paired with a sharp, modern black style. |
Steel & Graphite | Cool grayscale Light and Dark themes with a modern, minimal feel. |
Pearl & Indigo | Soft lilac-accented light theme with a bold, rich purple dark variant. |
Sky & Navy | Airy sky blue matched with a deep, calming navy. |
Gold & Coffee | Elegant golden hues paired with a warm, earthy brown. |
ContrastLight & ContrastDark | Accessibility-first options designed with maximum visual separation and clarity. |
Theme Name | Description |
|---|---|
Light | A clean, neutral light theme ideal for bright environments. |
Platinum | A refined light-gray theme with balanced contrast and minimalism. |
Steel | A modern, slightly darker light theme with a cool tone. |
Pearl | A soft light theme paired with indigo highlights for subtle contrast. |
Sky | A light theme with cool blue undertones, refreshing and calm. |
Gold | A warm, inviting light theme with golden accents. |
ContrastLight | A high-contrast light theme optimized for accessibility. |
Dark | A classic dark theme with soft accents for reduced eye strain. |
Onyx | A smooth, elegant dark theme with refined styling. |
Graphite | A muted, grayscale dark theme with an industrial edge. |
Navy | A rich dark theme with deep blue tones and crisp contrast. |
Coffee | A cozy dark theme with warm brown hues for a grounded feel. |
ContrastDark | A high-contrast dark theme for enhanced readability. |
Working with Themes
You can apply themes in two primary ways:
• In the Designer:
Select the theme from the Welcome Page or via the User Preferences panel. Use the Properties Sidebar to configure brushes that dynamically adapt to the selected theme.
• In Runtime:
Apply a theme dynamically using the property Client.Theme, in Displays Expressions, or Display Code Behind. When the properties isn't set, or set to empty string the client station falls back to the theme defined on ClientSettings Startup Theme.
@Client.Theme = "Dark";
This allows displays to instantly adopt a new look based on user preferences or application context—without requiring a restart.
Selecting a Startup Theme
You can select a pre-created Theme to startup your solution.
To do so, go to Displays → Client Settings → Initial Execution Conditions, and select the Theme in the combobox.
Select Colors in the Designer
When drawing displays, the Properties Sidebar, has the colors editors, to select colors for Border, Fill, and Text Elements.
When editing colors, the BrushEditorDialog is open:
The Theme, HMI (Hight Performance HMI) and Custom present the colors that are automatically updated when a global theme is applied to the solution.
- The Theme tab lists general-purpose colors, automatically filtered based on the selected property—such as background, border, or text.
- The HMI tab contains colors that follow High Performance HMI Graphics guidelines.
- The Custom tab are pre-defined colors for general purpose that can have the name and color customized to each solution.
Preview Runtime Appearance
In the display editor, the Properties Sidebar includes an Appearance section with a Theme dropdown to preview how the display appears under different themes.
That option will change the preview of the display, when running on the Designer tool.
When running the solution, change dynamically the Theme using the property @Client.Theme.
Theme Color Roles
The platform provides a structured color definition system. These colors are applied automatically by the system when creating UI controls, and can also be used directly in custom graphics, using the previously showed color selection dialogs.
The page Displays → Themes in the Solution Explorer has the full table will allow pre-defined theme colors. Those colors are organized in the following main groups:
- Theme Colors
- High Performance HMI Graphics
- Custom Colors
The General Theme Colors is organized in the following groups:
- General Theme Colors
- Main Backgrounds
- GroupBox Elements
- Diagram Elements
- Text Elements
- Dashboard Elements
- State and Interaction
- Disabled Controls
Below is a list of all standard theme colors, grouped by their functional role
Core Theme Colors
General Theme Colors
Color Name | Description |
|---|---|
DefaultBrush | Base color for generic content |
DefaultBorder | Border color for default elements |
WatermarkBrush | Watermark or placeholder text color |
ThemeBlackBrush | System black |
ThemeWhiteBrush | System white |
AccentBrush | Primary accent color for key elements |
Main Backgrounds
Color Name | Description |
|---|---|
PageBackground | Global background color for pages |
PanelBackground | Panel or container background |
PopupBackground | Background for popups or dialogs |
ControlBackground | General control (e.g. textbox) background |
ComboBoxBackground | Combo box background |
ButtonBackground | Standard button background |
GroupBox Elements
Diagram Elements
Color Name | Description |
|---|---|
LightBrush | Inner brush for group-like controls |
ShadeBrush | Outer/contrast edge for grouped zones |
Color Name | Description |
|---|---|
BayBrush | Diagrams or structural sections |
LegendBrush | Text/legend colors for diagrams |
Text Elements
Color Name | Description |
|---|---|
TextForeground | Primary text color, high contrast |
TextAccentForeground | Accent text color for emphasis |
TextSubtleForeground | Subdued text for hints or comments |
TextHyperlinkForeground | Hyperlink blue for clickable text |
Dashboard Elements
Color Name | Description |
|---|---|
HeaderBrush | Section headers |
TitleBrush | Panel titlebars |
Color Name | Description |
|---|---|
ItemBackground | Item content block |
ItemBorder | Border around blocks |
State and Interaction
Color Name | Description |
|---|---|
SelectFocusBrush | Focused item border |
SelectBrush | Highlighted selection |
FocusBrush | Keyboard or mouse focus indicator |
HoverBackground | Background when hovered |
HoverBorder | Border when hovered |
PressedBackground | Active press background |
PressedBorder | Border on press |
Disabled Controls
Color Name | Description |
|---|---|
DisabledForeground | Disabled/inactive text color |
DisabledBackground | Background for disabled fields |
DisabledBorder | Border around disabled controls |
High Performance HMI Graphics
Standard Colors
Alarm Colors
Color Name | Description |
|---|---|
DefaultFill | HPG base fill |
DefaultStroke | HPG base stroke |
OnFill | HPG “ON” fill color |
OnStroke | HPG “ON” stroke color |
OffFill | HPG “OFF” fill color |
OffStroke | HPG “OFF” stroke color |
ElementBlue | Standard blue for HPG blocks |
ElementLightBlue | Light blue accent in HPG elements |
ElementDarkBlue | Deep blue variant for HPG |
ElementGreen | Green fill used in HPG indicators |
Color Name | Description |
|---|---|
AlarmHighPriority | High severity alert |
AlarmMediumPriority | Medium alert |
AlarmLowPriority | Low severity warning |
AlarmDiagnostic | Diagnostic / info condition |
AlarmNormal | Default or cleared state |
Custom Colors
General Colors
Each theme includes a consistent set of color brushes designed for use in dynamic symbols, dashboards, and runtime visuals. These colors provide both visual consistency and functional clarity across light and dark environments.
ColorName | Description |
|---|---|
CustomColor | Theme Neutral brush, general use |
ColorPrimary | Contrast color, Taupe-brown for general UI accents |
ColorSecondary | Contrast color, Aqua for secondary strokes or graphics |
ColorNeutral | Contrast color, Lime green for subtle visual contrast |
ColorDimmed | Muted rose pink for soft accents or tags |
ColorPurple | Orchid purple for thematic color or data status |
ColorCoral | Coral pink-red for warnings or minor alerts |
ColorCyan | Cyan blue for visualizations and metrics |
ColorAmber | Amber for status or caution |
ColorSlate | Slate indigo for rich accents |
ColorTeal | Dark teal green for stable UI components |
ItemFill | Pastel background fill for neutral UI panels |
ItemLine | Gray line color for outlines and separators. |
ItemTitle | Deep blue for bold titles |
ItemControl | Orange accent used on control surfaces |
ItemCurrent | Bright mint to indicate current item |
ItemPrevious | Light pink to represent a previous value or state |
StateOK | Default OK state, black for cleared or normal |
StateAlert | Bright alert magenta state |
StateAlarm | Yellow alarm state, may blink or pulse |
StateGreen | Indicates running or active status |
StateRed | Stop or error status, critical fault |
StateActive | Muted blue for current or active states |
StateInactive | Gray to show inactive or idle |
Waste | Lilac tone for waste process visuals |
Water | Blue tone used to represent water elements. |
Customizing Themes
Color Names and Brushes
An easy to customize the themes for you specific applications, is to change the name of Colors, or its Brush keys.
The colors listed under Core Themes Colors, and High Performance HMI Graphics, can't be modified, as it would potentially create issues in standard UI components.
All the colors listed under Custom Colors, both the General Colors and Extended Colors Brushes, can have the name or its color modified.
In order to do that you just navigate in the Designer Solution explorer to Displays > Themes.
At that page you can edit the Name fields or colors directly on the table or copy and past from clipboard.
System Colors
You can only customize any Color after CustomColor (ID >= 100), or any color in CustomLight and CustomDark themes. The other names in and colors in the table, which as system colors, are protected.
Custom Light and Dark Themes
The table includes two columns for a CustomLight and a CustomDark theme, which are originally exactly the same of the Light and DarkThemes.
Use those columns if you to have a complete new theme in your solution.
Reset Colors Command
Attention when using the RESET or Paste commands on that user interface and they have an undo operation.
The Reset will overwrite all your CustomColors and the Custom Themes back to original software settings.
Importing CustomColors from Legacy Projects
About Themes on Previous Releases
In previous releases, the ColorID (and its names) could be completely customized for each project. Although this created flexibility, it also caused issues when trying to create reusable components across multiple projects.
Another difference: it was very common in previous releases for the Theme features to be used simply as a dictionary of colors, in order to keep the color selection consistent without actually changing the Theme. The application had only one theme, and the selection was just a dictionary of names.
In version 10, colors are still completely customizable. However, a set of standard colors, used by Windows Controls, popup backgrounds, dashboards, and other standard UI elements, now have a fixed ID to ensure consistency across multiple solutions and when applying Dark/Light theme changes.
When migrating from previous versions, you can retain specific color customizations by preparing a CSV file named <ProjectName>-CustomColors.csv, mapping the IDs to new standards. This file is automatically applied during the import of a legacy project (<ProjectName>.tproj).
Preparing a <Project>.CustomColors.csv File
The file must follow this format:
ID | ItemName | ColorName |
|---|
ID and ItemName: These two columns reference the customized color definitions from your legacy system. This data is typically extracted from the Run / Dictionaries / Themes table of earlier versions.
ColorName: This third column specifies which theme resource in the current system the legacy color should map to.
The first column, ID, is the color you want to map (from the Run / Dictionaries / Themes in previous releases).
The third column, ColorName, is the name of the color in the current release that the resource will be mapped to.
CustomColors Algorithm
When migrating the displays and symbols, the colors from legacy project mapped to the ID, will be translated to the id's of the ColorName.
The second column, ItemName, has no effect on the ID translation. However, it can be used to change the name of the custom colors in the new solution. If you want to rename a ColorName, specify the new name in the ItemName column.
If you want to keep the standard ColorName, simply repeat the ColorName value in the ItemName column.
Here is an example of configuration file. The Items in Bold, the decision was to keep the new name.
ID,ItemName,ColorName 1030,PanelBack,LightBrush 1041,AlertIndicator,StateAlarm 1042,AlarmOK,StateOK 1043,DataColor,ItemTitle 1044,LabelColorLight,ThemeWhiteBrush 1046,BadData,StateAlert 1047,RunTrue,StateGreen 1048,RunFalse,StateRed 1049,LabelColorDark,ThemeBlackBrush 1050,ItemGlow,SelectBrush 1052,Water,Water 1053,ItemControl,ItemControl 1054,CurrentDayBG,ItemCurrent 1055,PreviousDayBG,ItemPrevious
Note that for IDs 1052 and 1053, the ItemName was set to be the same as the ColorName, meaning the system will translate the IDs, but the name of the color will be kept to the new standard.
When trying to apply new names, only the names in the CustomColors group will accept the new names, the predefined colors for General Theme Colors and HMI will have their IDs translated but keep their standard names.
You don’t need to include every color from the legacy project, only the customized ones or those for which the default mapping does not meet your requirements. Standard theme roles are applied automatically during import.
After import, you can further refine or rename the colors directly in the Displays / Themes configuration table within the Designer.
The final step of the migration process is executed directly in the new Solution by editing the DisplaysThemes table.
The importer tool translated the resource IDs in the displays to the new IDs, but the color that corresponds to each ID was not changed. This is because it would not be possible for the importer to know, among the many themes from the previous release, which one you used as a reference for your color dictionary, nor which of the new themes would be your replacement.
In the themes you intend to use, if the custom color RGB is not what you want, you can customize it by editing that table.
You can either edit the colors directly by clicking on the color you want to change or export and import all the CustomColors to a CSV file.
The colors that allow customization are all colors in the CustomDark and CustomLight themes, as well as any colors with ID > 200 (from CustomColors downward in the themes table). Core theme colors cannot be changed to ensure consistency across different displays and their interactive controls.

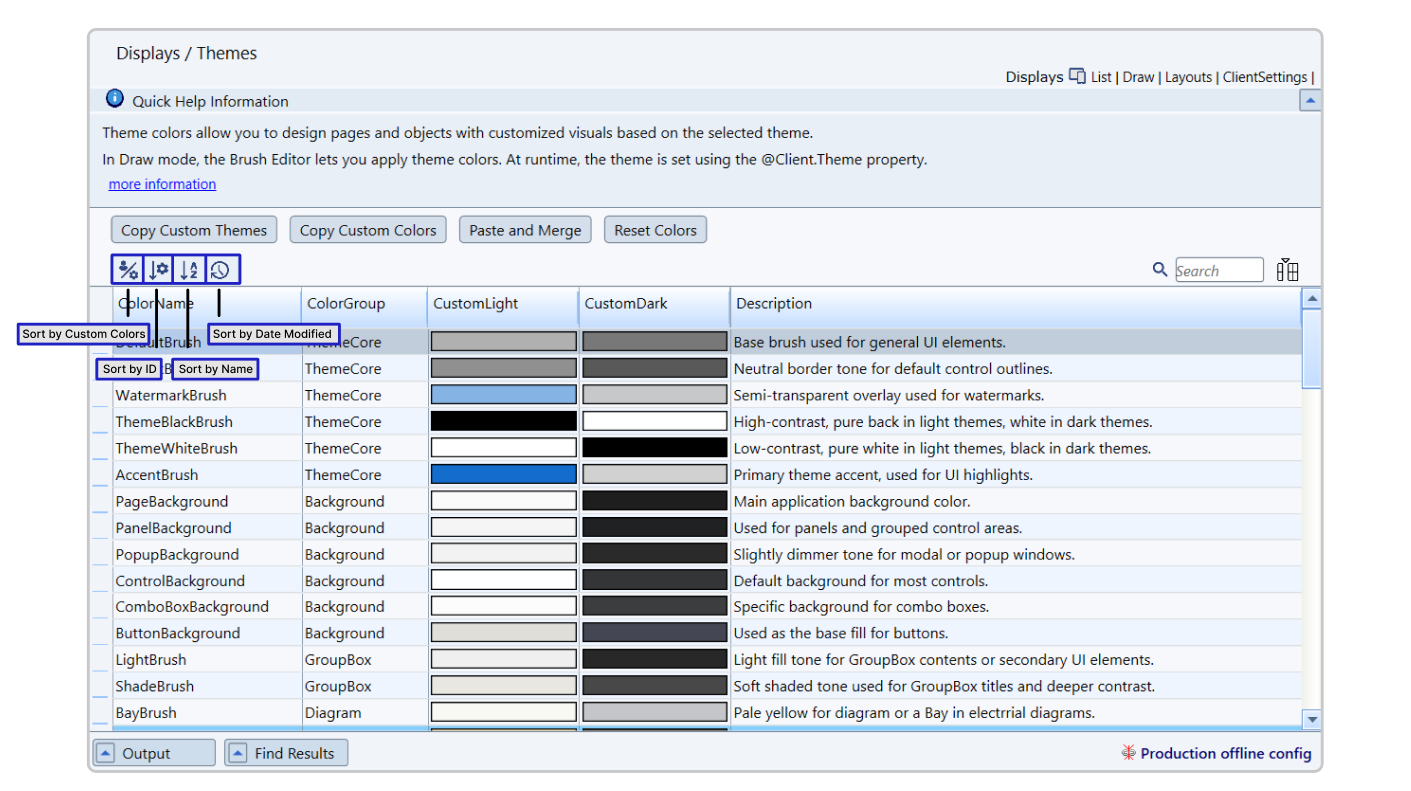

Sorting and Filtering the Themes Page
You can customize your visualization on the Themes page by applying sorting and filtering options according to your preferences.
You can filter by All Themes or Custom Themes, and sort by ID, Name, or Date Modified by clicking to the correspondent button. Additionally, you can right click on the Column Headings to find even more customability options.
