Overview

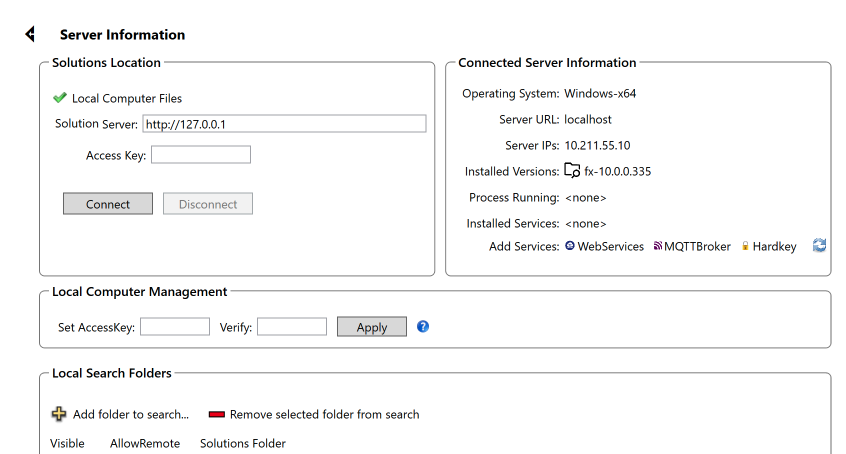

The Server Information page in the Solutions Manager provides details about the Connected Server and allows you to manage the search locations for solution files, either through directly mapped folders or via a connected server.
It also enables you to configure security settings for the Local Computer.
On this page:
Solutions Location
The list of solutions presented can include files from your local computer or connecting with a Solution Server running the TWebServices service. If you select Solution Server, you will need to specify the server address and connect to it.
To connect to a solution server, use the IP address and port of the target Solution Server. You may be required to enter an Access Key, which is the password defined on the target server. This configuration is available under Local Computer Management.
Local Computer Files
The Solutions exhibited in the Solution Selector list are the ones set in Local Search Folders when the application starts to run.
If you copy a new Solution (.tproj or .dbsln file) to a folder listed in Local Search Folders, it will not be exhibited in the Solution Selector until you click the Refresh button. To add or remove a folder from the search paths:
Click Find Solutions file.
Click Add Search Path to insert a new path;
Click Remove Search Path to remove a path.
Check Allow Remote Access and Allow Remote Run for multi-user development. (Optional)
Solution Server
To display the Solution List from a server running the TWebServices, the client computer must be connected to the Solution Server using its IP address and port.
If you have a computer where the solution files are stored and managed, and other computers from which you want to work remotely on those solution files, both computers must have the software platform installed and licensed. The client computer needs to connect to the solution server by using the IP address and port of the computer that stores the solutions. You can also connect to the solution server on your own computer using the IP address 127.0.0.1 and the port where the Solution Server is running. By default, the Solution Server runs on port 10108.
The TWebServices must be running to accept remote connections. See Service Verification for more information.
If using the Embedded Web Service (TWebService) platform, no configuration is required. If using Microsoft IIS web server, see Installing on Microsoft IIS.
Solution Server
When using Distributed Engineering, allowing users from remote computers to access the solution, you need to connect using the Solution Server instead of direct File Access.
Connected Server Information
The Connected Server Information displays details such as the operating system, server URL, server IP, installed versions, and running services. By default, the SolutionServer operates on port 10108 and includes services like Hardkey and WebServices. Additionally, you can configure services (WebServices, MQTT Broker, and Hardkey) to start as Windows services.
Local Computer Management
The Local Computer Management defines an AccessKey to connect securely with the Solution Server hosted on the local computer, adding an extra security layer for remote access. It includes configuration fields for setting and verifying the AccessKey: the "Set AccessKey" field for entering the password and the "Verify" field for re-entering the password to confirm it. The "Apply" button saves the AccessKey settings.
Pressing "Apply" with any input removes the AccessKey.
Finding Solutions Folders
After clicking Find Solutions in the Manager Workspace, you will be addressed to the Server Information, which allows to easily set a solution to auto-startup and define if the Solution Selector list will exhibit Solutions from a local or remote computer.
Solution Server | |
|---|---|
Field | Description |
Solutions list built from | It shows the options below, where user can choose either if the Solution list will be built from local computer files or a server. |
Local Computer Files | It sets Solution selector list to be built from the local computer. |
Solution Server | It sets a server to build the Solution selector list from. |
Connect | It connects to the Solution server set. |
Update... | It updates Solution server status. |
Server Information | It shows server IPs. |
Running Services | It shows current server's running services. |
Local Search Folders | Exhibit local folders set to search Solutions and the options below. |
Add Search Path | It adds new local path to search for Solutions. |
Remove Search Path | It removes a local path to search for Solutions. |
Visible | It shows the local paths in the Solution List, enabling you to select the solutions in the Manager workspace. |
Allow Remote | It enables remote access to the local paths set. |
The platform will scan for .dbSln files in the paths set. If the list is empty, check the search paths or the connection with the solution server. Also, try Creating a New Solution. If an error occurs when the Solution is loading, a log is created at "TraceLogs" folder
Folder Visibility and Remote Access configuration
Any folder included in Local Search Folders has controls for visibility and remote access.
Permissions for remote access are set by folder, so place your solutions in the folders accordingly. You can keep many solutions in one folder or create a separate folder for each one.
To manage your Solutions Folders:
After adding a search path, select the one you would like to allow remote access.
Check Visible to enable remote access for selected folder.
Check Allow Remote to enable Solutions from selected folder to be run by remote users.
Multi-user Development
For information about how to collaborate with other users during the Solution development, please check Multi-user Development.
