Unified Namespace (UNS) Module Overview

The Unified Namespace (UNS) provides a centralized real-time data repository with hierarchical organization for all solution data. As the first pillar in the Four-Pillar methodology, it creates a standardized method for accessing and managing tags, assets, and external data sources - forming the foundation upon which all other modules build..

→ Tutorial | Concept | UNS Module links: How-to Guide , | Reference

PanelborderWidth1borderStylesolidtitle

On this

Page

page:

Table of Contents

maxLevel	2
minLevel	2

Why Start Here: Without a properly structured UNS, your solution will face maintenance challenges, scalability issues, and integration difficulties. The UNS establishes your data model, naming conventions, and organizational structure that every other module will reference.

UNS Module links: [How-to Guide], [Reference Guide]

Key Concepts

Concept	Description	Example
Tag	Process variable representing real-time and historical data	Tank01.Level, Pump01.Status
Asset Tree	Hierarchical representation of solution data	/Plant/Area1/Line1/Equipment
DataTemplate UserType (UDT)	Reusable data structure with variables and references	Motor template with Speed, Current, Status
TagProviderTagProvider Services	Direct interaction with variables in remote systems	OPC UA server, MQTT broker connections
Enumeration	Named integer values with messages and colors	0=Stopped, 1=Running, 2=Fault
Runtime Database	In-memory real-time database managing UNS data	TServer.exe process

What the UNS Does

The Unified Namespace serves as your solution's data backbone:

Data Organization	System Integration
Creates real-time data models with tags and templates Organizes data in hierarchical Asset Tree structure Maintains relationships between equipment and data Provides intuitive navigation through process hierarchy	Enables dynamic connectivity to external systems Supports advanced data types including SQL datasets and JSON objects Provides type-safe references and up to tri-dimensional arrays Maintains event-driven, in-memory database

Configuration Workflow

Step	ActionDescription	Tool (Designer UI)	Tools
1. Define DataTemplatesUserTypes	Create reusable structuresDesign custom data structures for assets	UNS → UserTypes	Template Editor
2. Build Asset Tree	Organize hierarchyCreate folders matching physical/logical structure	UNS → Asset Tree	Asset Browser
3. Create Tags	Define variablesAdd	tags based on templates or basic typesUNS → Tags	Tag Editor, DataExplorer
4. Configure Enumerations	Set discrete values	Define state options with messages and colorsUNS → Enumerations	Enumeration Editor
5. Add TagProvidersTagProvider Services	Connect external dataLink	to OPC-UA, MQTT, databases, historiansUNS → TagProvider Services	TagProvider ConfigServices
6. Map Remote Data	Link to Asset folders	Connect TagProvider data to namespace locations	Asset Mapping
Unified Namespace Configuration Workflow
Step	Action	Description	Tool (Designer UI)
1. Define DataTemplates	Create reusable structures	Design custom data structures for assets	UNS > DataTemplates
2. Build Asset Tree	Organize hierarchy	Create folders matching physical/logical structure	UNS > Asset Tree
3. Create Tags	Define variables	Add tags based on templates or basic types	UNS >Tags, DataExplorer
4. Configure Enumerations	Set discrete values	Define state options with messages and colors	UNS > Enumerations
5. Add TagProviders	Connect external data	Link to OPC-UA, MQTT, databases, historians	UNS > TagProviders
6. Map Remote Data	Link to Asset folders	Connect TagProvider data to namespace locations	UNS > Asset Tree
UNS → Asset Tree	Asset Mapping

Info

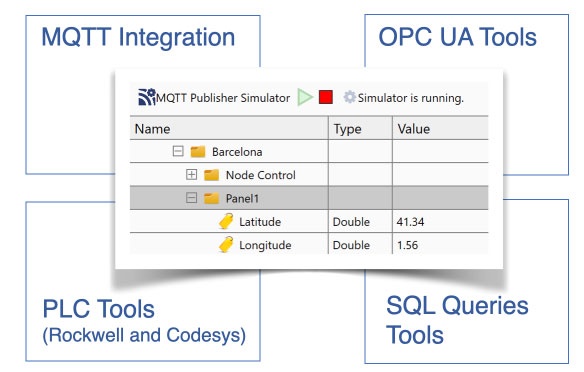

title	DataExplorer: Accelerating UNS Development

The DataExplorer tool streamlines UNS creation by enabling:

Discovery - Browse MQTT brokers, OPC servers, PLCs, and SQL databases
Import - Create tags and templates directly from discovered structures
Validate - Test connections before adding to production

This tool reduces manual configuration time by 50-70% when building your tag structure during the Foundation phase.

[→ Learn more in the DataExplorer How-to Guide →]

Runtime Behavior

Data Loading and Management

When solution execution starts, the Unified Namespace definition loads into the in-memory real-time database (TServer.exe process). This database enables event-driven data exchange between all solution modules with millisecond precision.

Data Access Methods

Modules access Unified Namespace variables through two primary methods:

Direct Tag Access

Using tag names and paths: ``` Tag.Machine1.Temperature Tag.Tank01.Level ``` - Supports local tags - Access nested properties - Type-safe references

Asset Method Access

(Local Tags)	Asset Method Access: Using the Asset() function
Using tag names

Direct Tag Access: Using tag names and paths

Example: Tag.Machine1.Temperature
Supports both local tags and nested

template properties

Supports mapping on Device Module, or setup using the LinkedData field.

UserType properties

When connecting the tag with the field device

Use the Devices Module to map the Tag to a DevicePoint
If the protocol has TagDiscovery, you can use the DataLink field
- In this case only the TagProvider services must be enabled

Asset Method Access: Using the Asset() function

Example: Asset("/Line1/Machine1.Temperature")

Required for TagProvider services using dynamic external references

Local Tags can be also use this syntax

TagProvider TagDiscovery Service

If the protocol supports TagDiscovery (OPC UA, MQTT, ..)
- Dynamic Tags can created in runtime as a Asset("path") is used.
- see more at ->

Local Tags vs Asset Method Access (External Dynamic Tags)AspectLocal TagsAsset Method AccessDefinitionVariables created within solutionDirect link to external system variablesCreationConfigured locally in DesignerDefined in remote system, linked dynamicallyData MappingDevices Module handles remote mappingNo local mapping requiredAccess MethodTagName or AssetPathAssetPath only via Asset() methodUse CaseCore solution data requiring local controlDynamic external data without local overheadPerformanceOptimized for frequent accessOn-demand access with caching

Features Highlights

Advanced Data Types

SQL-compatible types - Full database data type support
.NET entities - Images, JSON, DataTables in single tags
Dynamic structures - Tri-dimensional arrays, lists, collections
Type-safe references - Dynamic tag assignments with validation

Hierarchical Organization

Asset folders - Logical grouping matching equipment
Nested templates - Composition and inheritance support
Reusable components - Template-based design patterns
Clear data paths - Intuitive navigation through hierarchy

External System Integration

Protocol support - ControlLogix, OPC-UA, MQTT SparkPlugB
Database connectivity - SQL, CanaryLabs, InfluxDB, OSIsoft PI
Remote applications - Other FrameworX solutions
Dynamic browsing - Real-time discovery of data structures

Real-time Performance

Event-driven updates - Millisecond timestamp precision
In-memory database - High-performance data access
Publish-subscribe model - Efficient module communication
Store-and-forward - Reliable handling during disconnections

Common Implementation Patterns

ISA-95 Model Implementation

evel	Asset Structure	Typical Tags
Enterprise	/Company	KPIs, Financial metrics
Site	/Company/Site1	Production totals, Energy usage
Area	/Company/Site1/Area1	Area production, Quality metrics
Line	/Company/Site1/Area1/Line1	Line speed, Product counts
Cell	/Company/Site1/Area1/Line1/Cell1	Equipment status, Process values

Naming Convention Best Practices

Code Block

title	Naming Individual Tag Names

Standard Format: [Area]_[Equipment]_[Component]_[Signal]

Examples:
WTP_PUMP01_MOTOR_RUNNING
WTP_PUMP01_MOTOR_SPEED_SP
WTP_TANK01_LEVEL_PV
BLDG_HVAC_AHU01_TEMP_SP

if using UDT SP is BLDG_HVAC_AHU01_TEMP.SP

Code Block

title	Naming using Asset Folders and UDTs

Standard Format: [Area]/[Equipment]/[Component][Signal].[Attribute]

Examples:
WTP/PUMP01/MOTOR/RUNNING
WTP/PUMP01/MOTOR/SPEED.SP
WTP/TANK01/LEVEL.PV
BLDG/HVAC/AHU01/TEMP.SP

Code Block

title	Naming adding a DataTemplate for Components( MOTOR, TANK)

Standard Format: [Area]/[Equipment]/[ComponentUDT].[Signal]

Examples:
WTP/PUMP01/MOTOR.RUNNING
WTP/PUMP01/MOTOR.SPEED.SP
WTP/TANK01/LEVEL.PV
BLDG/HVAC/AHU01.TEMP.SP

Development Efficiency Tools

Bulk operations - Import/export via Excel, CSV
Search and filter - Quick tag location and editing
Template library - Reusable component repository
Cross-reference - Find tag usage across modules
Version tracking - Built-in change management

Info
Rename any Tag , anytime - Without losing configuration integrity and runtime online updates. Cross-reference Tag usage - on-the-fly update, information is always instantly available

Next Steps

Continue Building Your Solution

[P2 - Process Modules →] Connect to field devices and manage operations

[P3 - Application Modules →] Add business logic and data processing

[P4 - User Interface →] Create operator displays and dashboards

Deep Dive Resources

[UNS (How-to Guide)] - Step-by-step configuration instructions
[UNS (Reference Guide)] - Complete technical documentation
[Template Library] - Pre-built industry templates[DataExplorer Tutorial] - Accelerate your UNS developmentP2: Process Modules] - Connect to field devices
