Runtime Execution Profiles (Reference)

Execution Profiles manage database connections and device nodes for different environments, automating configuration changes between development, validation, and production stages.

Access: Runtime → Execution Profiles

Parent Page: Runtime Designer UI (Reference)

Profile Overview

Execution Profiles eliminate manual configuration changes when moving solutions between environments:

Profile	Purpose	Typical Use
Production	No replacements	Live system
Development	Dev connections	Testing/debugging
Validation	Test environment	QA/staging
Custom	User-defined	Lab/customer site

Production profile uses solution's main configuration. Other profiles apply replacements at runtime.

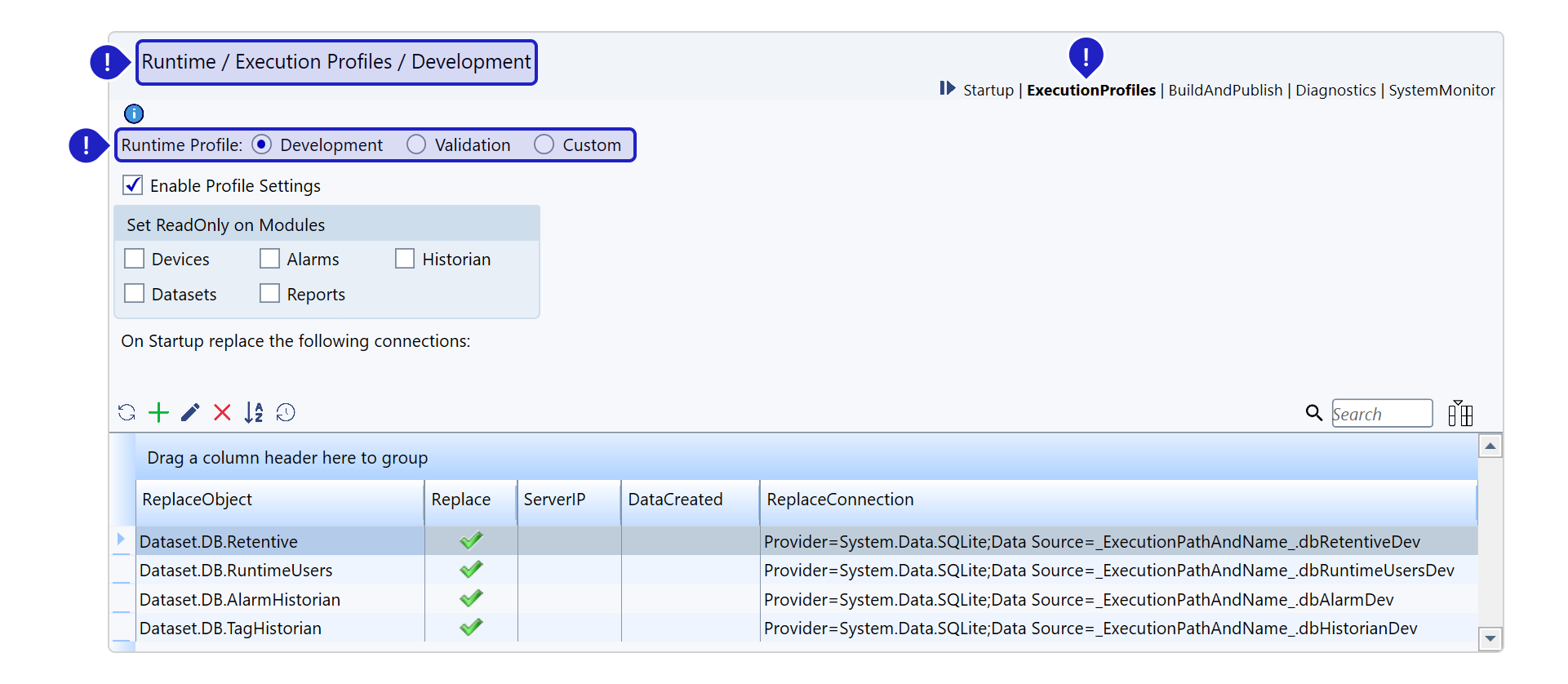

Configuration Interface

Profile Settings

For each profile (Development/Validation/Custom):

Setting	Function
Enable Profile Settings	Activate this profile
Set ReadOnly on Modules	Prevent modifications
On Startup Replace Connections	Define replacements

Read-Only Modules

Select modules to protect from changes:

Tags
Devices
Alarms
Scripts
Displays

Connection Replacement

Replacement Table Columns

Column	Description	Example
ReplaceObject	Object to replace	DB_Production
Replace	Enable replacement	True/False
TableType	Configuration table	DatasetsDBs
ServerIP	New server address	192.168.1.100
ReplaceConnection	New connection string	Full connection
DateCreated	Entry creation	Timestamp
DateModified	Last change	Timestamp

Supported Replacements

Type	Table	Use Case
Database	DatasetsDBs	Different SQL servers
Device Node	DevicesNodes	Different PLCs
Historian	HistorianStorageLocation	Different storage
TagProvider	UnsTagProviders	Different sources

Using Profiles

In Designer

Go to Runtime → Startup
Select Execution Profile
Run solution
Profile replacements apply automatically

Command Line

bash

# Development
TStartup.exe /solution:"solution.dbsln" /profile:1

# Validation
TStartup.exe /solution:"solution.dbsln" /profile:2

# Custom
TStartup.exe /solution:"solution.dbsln" /profile:3

Windows Service Configuration

Running Profiles as Service

AutoStart is Production-only by default. To run other profiles:

Enable AutoStart in Production profile

Edit Registry Key:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\TStartup-<SolutionName>

Modify ImagePath:

# Original (Production)
TStartupService.exe /solution:"path\solution.dbsln" /port1:3101

# Modified (Development)
TStartupService.exe /solution:"path\solution.dbsln" /profile:1 /port1:3201

Profile Index Values

Profile	Command Parameter
Production	(none)
Development	/profile:1
Validation	/profile:2
Custom	/profile:3

Typical Configurations

Development Profile

Common replacements:

Local test database
Simulation devices
Debug file paths
Test email server

Validation Profile

Common replacements:

Staging database
Test PLCs
QA file shares
Test notifications

Custom Profile

Use cases:

Laboratory setup
Customer demo
Training environment
Pilot installation

Best Practices

Profile Design

DO:

Keep Production unchanged
Document all replacements
Test profile switching
Use meaningful names

DON'T:

Modify Production directly
Mix environment data
Skip validation testing
Use production credentials

Security Considerations

Never store production passwords in profiles
Use environment-specific credentials
Limit profile access
Audit profile changes

Verification

Check Active Profile

Monitor shows current profile:

Info.ProfileName property
Runtime System Monitor page
Client status bar

Verify Replacements

Confirm replacements applied:

Check connection strings
Test device communication
Verify database access
Monitor data flow

Troubleshooting

Issue	Cause	Solution
Profile not switching	Not enabled	Enable profile settings
Connections unchanged	Replace unchecked	Check replacement flag
Service wrong profile	Registry not updated	Edit ImagePath
Port conflicts	Same port used	Change profile ports
